Develop and Implement a Personal Backup Plan

Overview

Ask any PC user what their backup plan is and the answer will likely be "what backup plan?" Thanks to commercials for online backup companies and other tech related shows that remind us about the issue, people are becoming increasingly aware that their data is at risk. But somewhat analogous to an annual trip to the doctor, developing and implementing a backup plan for your personal data is neither fun or at the top of most people's list of 'things to do'.

So, just what is a backup plan and why do you need to worry about one? Wikipedia defines a backup as "making copies of data so that these additional copies may be used to restore the original after a data loss event." A plan is a structured methodology for accomplishing a task - in this case, data backups. I hear a lot of tech savvy people these days saying that you need to back up your data. That is a generalization and may or not be true for your specific needs.

The question is often asked, "When should I back up my data?" The answer is fairly simple. Back up your data whenever you don't want to lose it! Now that seems like common sense and implies a different strategy for each person. For example, I don't back up my operating system and all of my system specific configurations, although I do back up my email. I quite simply don't care if I have to spend a few hours to reload Windows. I have loaded and reloaded Windows so many times that I have it down to a science. You may feel differently. The point is that you back up your data when you can't or don't want to recreate it and you should always assume that any work that you do on your computer can be lost at any time.

If your computer is being shared with other family members, you need to know where they are saving their personal files. It may be a good idea to set up some personal directories for them or you can create separate user login accounts for them and include their personal user folders created by the OS. I personally don't like to use the My Music, My Pictures, etc. files created by XP or the Music, Pictures etc folders created by Vista. I create my own and I put them on a different logical drive and, if possible, a different physical hard drive than the one that the operating system is on.

TIP- When designing your backup plan choose options that are simple to implement. You are far more likely to maintain up to date backups when little or no work is required to implement them.

Topics Covered In This Article

Article Overview
Configuring Your PC to be Backup Friendly
The Backup Plan Levels Overview
The Backup Plan Levels Advantages and Disadvantages
The Steps of the Backup Plan
Media Selection Criteria
Data Recovery
So What is My Backup Plan?
The Final Word
Editorial Privilege
Appendix A - On PC Media Types for Backup Strategy Level One
Appendix B - On PC Intel Matrix RAID Options for Backup Strategy Level One
Appendix C - On Site Media Types for Backup Strategy Level Two
Appendix D - Level Two Real World Transfer Rates
Appendix E - Off Site Media Types and Options for Backup Strategy Level Three
Additional Resources
Footnotes
Test System Specs

Configuring Your PC to be Backup Friendly

Before I go into the details of the different backup levels I want to recommend some simple ways that you can configure your computer to make the backup process simpler.

Structure your file system for simpler backups

TIP: Set up your logical drives/partitions and folders/directories in a way to simplify your backups

I have the following logical drive/partition and high-level folder/directory structure:

Logical Drive C: Operating System - No Backup
Logical Drive D: OS Applications - No Backup
Logical Drive E: Documents - Full Backup

Archive

Work
Various Directories

Downloads

Apps
Drivers
Mail Exports
Manuals and Docs

Personal

Various Directories

Pics

Various Directories

Work

Various Directories

Logical Drive F: Music - Backup as Needed
Logical Drive G: Multimedia - Backup as Needed

With a few clicks of the mouse I can backup my personal files that are stored on one logical drive. I separated the music and multimedia files because I add files at a different rates to the two directories.

Create directories within your logical drives to simplify your backups. For example, if you have a directory called \Work where you keep your current work files, also consider a directory called \Archive\Work where you can move files that you are not currently working on or changing. You can schedule active backups to include the \Work directory and only backup the archive directory when you move files to that directory.

Structuring your logical drives and directories this way will allow you to back up entire logical drives and directories simplifying the backup configuration and keep the number of files backed up to a minimum.

Tip: Unlike files that you back up, archived files are files that you are not actively using but may want to refer again at some later date. Don't forget to move files to an 'active' directory that will backed up if you make changes to an archived file.

Order Your Next Computer with a Backup Plan in Mind

TIP: Add the hardware to your next PC that will give you multiple backup options.

With the price of hard drives as low as they are you should consider ordering one or more additional hard drives to support one of the backup options listed below. Also consider a flash card reader with multiple card type capabilities. One of these can be purchased for less than $20 U.S. and will give you an additional inexpensive backup option. Although they are called flash card readers almost all of them allow you to read from and write to flash card media.

Consider LAN or WiFi support if you will have more than one computer.

And, of course, a good fast CD/DVD Read/Write drive is essential these days.

Dial-up or Broadband?

If you are undecided between dial-up service or broadband, consider that off site backups can now be easily accomplished with a broadband connection. That alone makes broadband a compelling choice and at least in part justifies the additional cost.

Back to Topics Covered In This Article

The Backup Plan Levels Overview

I have developed a comprehensive backup plan with four levels going from simple/ineffective to complex/effective.

Level 0 - No Backup Plan

Dare I say it but most who use a personal computer fall into this category. Level 0 is no backup plan at all or a very limited backup. Important files may be occasionally saved to a floppy, CD, DVD or second drive, but there is no scheduled plan to do backups. This may be a reasonable plan if you don't keep personal information on your PC, but be careful. There may be important information that you are forgetting about like your emails, browser bookmarks, IM messages and downloaded software/drivers that you don't want to have to download again.

I do a lot of Beta testing and Windows loading and reloading. I inevitably forget about my browser bookmarks and have to spend time searching for a favorite site after Windows is reinstalled. There are really great sites that I have bookmarked that are forever lost because I have completely forgotten about them. I plan to save my emails and bookmarks in the future when reinstalling Windows.

If you believe that you fall into this category you should still consider weekly or bi-weekly email backups. Another option to seriously consider is making an ISO image or full partition backup image of your operating system. An ISO image of your OS will allow you to reinstall Windows exactly how it looked at the time of the backup including any emails, browser bookmarks, personalized settings, installed drivers and installed applications. Far and away the most recommended imaging software in the alt.comp.hardware newsgroup that I frequent is Acronis True Image.

If you own a Maxtor or Seagate hard drive there is a limited version of Acronis True Image available free of charge at the Seagate Web site. See Additional Resources below for more information.

Level 1 - On PC Redundancy

A level one plan can be developed that will create multiple copies of your personal files without any user intervention and occur automatically on a scheduled basis. Options in this category include scheduled backups to a secondary internal or external hard drive or SSD (Solid State Drive), hardware or software based RAID and shadow copies.

The options in level one are not considered true backup solutions since they use the same device to store the original files and to create and store the duplicate files.

TIP: It is easy to accidentally open a file from your backup device. Verify the drive and directory when opening an existing file.

TIP: Choose Shadow Copies/Previous Versions and at least one more option from level one to have both data redundancy and multiple versions of your personal files.

TIP: Know where your files are being saved. It is easy to save files to a directory that is not part of your backup plan especially for software that creates projects with multiple files. Some of these files may be saved to default directories on the C: drive. You can be unaware of this until you need to restore the project and its files and find that some critical files are missing.

Review the Level One Media Options and Intel Matrix RAID Options

Level 2 - On Site Storage

Level 2 involves creating duplicate copies of your files on removable media including floppy diskettes, tape cartridges, CD-ROM, DVD, Blu-ray, flash memory and removable hard disk cartridges. Although not removable media, I have included Bridged USB, Ethernet Crossover, LAN and WiFi in this category since backup files are stored on site on a different PC.

You may think that you know the best media for your backups. You may be surprised when you look at some basic facts in the comparison table in Appendix B below and find that some of your preconceptions are misplaced. I certainly found that to be the case as I did my research.

I have to admit that I don't maintain my On Site backups as I should. I have two DVDs that I try to keep current. The first is a DVD of all of my freeware software that I need in a new OS install. As I find and download new freeware I update my DVD+R disc. This is a good option for those who don't want to keep a current ISO image of your operating system.

The second DVD is a copy of all of my 'work' files. These include my Visual Basic projects, Word documents, HTML text files and pictures that I have spent a lot of time creating.

TIP: Maintain at least one Windows Recovery backup and one Personal Files/Work backup.

Review the Level Two Media Options and the Level Two Real World Transfer Rates.

Level 3 - Off Site Storage

Options in this level will rescue your data from less likely natural disasters like floods, fires, earthquakes, thunderstorms, tornadoes, hurricanes etc. It will also protect you from the theft of your PC. These are low risk, high impact events. It is up to you to decide whether or not this additional level of safety is needed. If you rely on your PC to generate income, this level is highly recommended.

My brother is an IT manager for a Fortune 500 company. We were discussing the various levels of my data backup plan and he mentioned that this level is usually referred to as part of a disaster recovery plan. While that may be true in the corporate world, I believe it is quite acceptable to refer to it as a data backup plan for ordinary PC users. It is easy to confuse a Backup Plan and a Disaster Recovery Plan but in general a Backup Plan is part of a more comprehensive Disaster Recovery Plan.

He also asked me how many people I knew who had a disaster of this type. I told him one. He was obviously surprised at my answer, but disasters can and do happen every day.

Choose a level 3 option if you have critical data or run a small business. Consider this option if you have broadband and have personal files that you wouldn't want to lose in a natural disaster. This level involves copying your data to one of the media choices in Level 2 and storing the media off site or electronically transferring your files off site to an Internet based storage facility.

Some ISPs have service plans that allow for storage of your files on their servers often for digital photographs. Check with your ISP to see if they offer this service. Be aware though that ISPs almost never offer guaranteed backup for this service and, although rare, your files could be lost. There are also security issues if the files are not encrypted.

Review the Level Three Options

The Four Backup Plan Levels

Back to Topics Covered In This Article

The Backup Plan Levels Advantages and Disadvantages

Backup Strategy Advantages Disadvantages Comments

Level 0
No Backup Simple and inexpensive. Occasional backups may still be required. A lack of a formal backup plan may catch the average PC user losing important files in a hardware failure. If that occurs the costs for data recovery may far exceed the costs of any of the backup options listed in levels 1 to 3 below. A reasonable backup plan for those who don't care if they lose every file on their computer.

Level 1
On PC Automatic and/or scheduled backups maintaining a good level of current recovery options with no additional user time spent. Additional cost for required hardware. Not a true backup solution but should be considered as data redundancy. Files can be lost due to the failure of the motherboard, hard drive, SDRAM or power supply. Files may be lost in a natural disaster, flood, fire, earthquake, thunderstorm, tornado, hurricane etc. Files may be lost due to a power surge. Files can be lost due to tinkering by someone with access to the PC. Files can be lost if the PC is stolen. Files can still be accidentally deleted but Shadow Copies/Previous Versions will allow you to restore a snapshot of the file from an earlier date.

Level 2
On Site Protects against data loss due to hardware failure, power surges and computer theft. Time consuming. Requires the time and discipline to keep a current library of data backups. Removable media have a limited shelf life. ¹ While safer than level 2, files can still be lost due to natural disasters or fire.

Level 3
Off-site Protects against loss due to localized disasters. Additional data backup insurance that protects you from low risk, high cost, high impact events. Off-site storage of removable media is expensive in both time and money. Removable media have a limited shelf life.¹ It is the hardest backup plan to maintain due to the manual intervention required. Electronic file transfers are quickly becoming more affordable and easier to implement. Data can be stored off-site on physical media or electronically at a company specializing in data storage.

Backup Strategy	Advantages	Disadvantages	Comments
Level 0 No Backup	Simple and inexpensive.	Occasional backups may still be required. A lack of a formal backup plan may catch the average PC user losing important files in a hardware failure. If that occurs the costs for data recovery may far exceed the costs of any of the backup options listed in levels 1 to 3 below.	A reasonable backup plan for those who don't care if they lose every file on their computer.
Level 1 On PC	Automatic and/or scheduled backups maintaining a good level of current recovery options with no additional user time spent.	Additional cost for required hardware. Not a true backup solution but should be considered as data redundancy.	Files can be lost due to the failure of the motherboard, hard drive, SDRAM or power supply. Files may be lost in a natural disaster, flood, fire, earthquake, thunderstorm, tornado, hurricane etc. Files may be lost due to a power surge. Files can be lost due to tinkering by someone with access to the PC. Files can be lost if the PC is stolen. Files can still be accidentally deleted but Shadow Copies/Previous Versions will allow you to restore a snapshot of the file from an earlier date.
Level 2 On Site	Protects against data loss due to hardware failure, power surges and computer theft.	Time consuming. Requires the time and discipline to keep a current library of data backups. Removable media have a limited shelf life. ¹	While safer than level 2, files can still be lost due to natural disasters or fire.
Level 3 Off-site	Protects against loss due to localized disasters.	Additional data backup insurance that protects you from low risk, high cost, high impact events. Off-site storage of removable media is expensive in both time and money. Removable media have a limited shelf life.¹ It is the hardest backup plan to maintain due to the manual intervention required. Electronic file transfers are quickly becoming more affordable and easier to implement.	Data can be stored off-site on physical media or electronically at a company specializing in data storage.

Back to Topics Covered In This Article

The Steps of the Backup Plan

Determine the choices in the tables below that best fit your needs

Choose two from Level 1
Choose one from Level 2
Choose one from Level 3

Purchase any necessary equipment and/or storage media
Subscribe to an off-site storage company if choosing Level 3
Implement your plan
Maintain your backup plan based on a reasonable backup schedule for each level

Back to Topics Covered In This Article

Media Selection Criteria

All backup options except the electronic file transfer option require you to beg, borrow or buy media that will be used to store your files. Below is a list of the criteria that need to be evaluated when selecting your backup media and options:

Simplicity - How much technical knowledge is needed and how easy is it to implement and use?
Speed - How long does it take to back up and retrieve your files?
Cost - How much does the supporting hardware cost and the media cost per MB?
Size - How many data can you put on the media?
Convenience - How easy is it to back up and restore your files?
Accuracy - How many data errors can be expected and how are they handled?
Reusability - How many times can the media be written to?
Reliability - How dependable is the writing and retrieval of backed up files?
Durability - How susceptible is the media to physical damage?
Longevity - How long will your files be accessible?
Acceptance - How well standardized and used is the technology?

Refer to these media selection criteria when choosing the best media for your backups. Media costs, transfer rates, advantages, disadvantages and other media information is detailed in the four appendices at the end of this article:

Back to Topics Covered In This Article

Data Recovery

The payoff for all of your planning and effort of turning your backup plan into reality occurs when you have an event that corrupts your files or makes them forever inaccessible. Considering that data recovery can easily cost $500 to $1000 from a dead hard drive, a good backup plan can be cheap in comparison.

Data recovery is fairly simple and straightforward for all of the backup options listed. It is simply a matter of inserting your backup media and copying the files to a new hard drive, copying them from a second PC, downloading them from your online backup service or copying them from a backup drive to your new drive.

Data recovery for RAID can be a little more complicated. If you have a RAID 1 mirrored volume, your RAID array will start up in Degraded status. Relax, you haven't lost any of your files, but you no longer have data redundancy. Your files are available but you should buy the same make and model hard drive to replace the failed drive as soon as possible. If you can't find the same make and model drive, you can try a similar size drive, though there is a risk of compatibility and performance issues if you do this.

If you have a RAID 0 and RAID 1 array, all data will be lost on the RAID 0 striped volume if one drive fails. You will need to replace the failed drive again using the same make and model if possible. You will then need to reload/replace the files on the RAID 0 volume from your original CD-ROM/DVD discs or from your backup. While waiting for a replacement drive you can continue to use your degraded RAID 1 volume files, but it is a good idea to not try to load new software or an operating system while the array remains in degraded status.

TIP: If you want to have your operating system on a RAID 0 volume it is a good idea to have a third drive with enough free space available to load the OS in case one drive in the RAID array fails.

So What is My Backup Plan?

RAID 0 and RAID 1
Additional internal hard disk
Previous Versions

DVD
Flash Memory

Electronic file transfer

I occasionally copy my Document directory over to a 30 GB hard drive (Level 1) and even less occasionally copy the same directory over to a DVD (Level 2).

My backup plan may not work for you and there is no one perfect backup plan for everyone. Finding one that will work for you is a good investment in a better nights sleep.

Back to Topics Covered In This Article

The Final Word

If you will remember I stated at the beginning of this article:

I have developed a comprehensive backup plan with four levels going from simple/ineffective to complex/effective.

This is, generally speaking, true for all of the options except for the Electronic File Transfer option. This option is both simple to use and effective. What does this mean? This is likely to become the option of choice for many PC users. It also means that if you haven't considered this option and you have a broadband connection to the Internet, it's time for you to do a little homework and seriously consider this backup option.

With some online storage sites offering up to 25 GB of free storage, there is no monetary reason for the average PC user not to spend a few minutes and try out one of these services. Even dial-up users can benefit from these online backup services if you have a reasonably small amount of information that you need to transfer electronically.

Back to Topics Covered In This Article

Editorial Privilege

In 1947 a shepherd discovered the first of the Dead Sea Scrolls in a cave on the Northwest shore of the Dead Sea. "According to carbon dating, textual analysis, and handwriting analysis the documents were written at various times between the middle of the 2nd century BC and the 1st century AD."² Some of the scrolls were intact or nearly intact. ³

I can't help but wonder how much of the information stored on computer related media will still be readable in 20 centuries. We are a long way from the perfect medium for backing up and archiving our digital data.

If you are like me, you might have some old backups lying around that have by neglect morphed into data archivals. If they are five or more years old and on optical media or more than ten years old on magnetic media it would be a good idea to copy them to newer media.

All media including hard drives have a limited life span and shelf life. For the purpose of this discussion the question is "Will you still be able to read your floppies, tape cartridges, CD-ROMs, DVDs, hard disk cartridges, SSDs or hard drives five to ten years from now?" My experience is that you most likely will, but you have to have the backups on the media first before you can find out.

Back to Topics Covered In This Article

Appendix A

Media Types for Backup Strategy Level One - On PC

Implementation Choices	Description	Dollar Costs⁴	Advantages	Disadvantages	Comments
Additional internal hard disk	One more internal hard drive added to your PC set aside solely for backing up your files. If you have RAID or multiple hard drives, this drive is in addition to those hard drives.	$75	Inexpensive over the lifetime of the hard drive. Fast and relatively simple to setup. Fast and error free backups.	Susceptible to the same data loss events as the other hard drives on your system. Costs are incurred up front. Backups will slow down your system unless scheduled during off-hours.	Can be implemented programmatically with backup scheduling software in your operating system as a scheduled job or manually if you are disciplined enough.
Additional external hard disk	One more external hard drive added to your PC set aside solely for backing up your files. If you have RAID or multiple hard drives, this drive is in addition to those hard drives.	$112.50	Inexpensive over the lifetime of the hard drive. Fast and relatively simple to setup. Fast and error free backups. External drive can be removed and stored off-site or used to transfer files to another computer.	Susceptible to the same data loss events as the other hard drives on your system. Costs are incurred up front. Backups will slow down your system unless scheduled during off-hours. Can be knocked over on a desktop or knocked off a desktop. Data loss can occur if device is unplugged or data cable removed before all data is written to the drive. USB devices are particularly prone to data errors due to removal of device without properly flushing buffered data. External hard drive transfer rates can be drastically limited by a USB interface, less so if the drive and your computer supports Hi-Speed USB - see the three data rates supported by USB. eSATA drives preferable due to their faster transfer rates but motherboard must support eSATA or an eSATA card is required.	Backups can be implemented programmatically with backup scheduling software in your operating system as a scheduled job or manually if you are disciplined enough. Some external drives offer a one-touch push button to back up a pre-determined backup set, but you still have to remember to press the button. Best implemented via a FireWire IEEE 1394 I/O port or a eSATA port. USB external drives will be slower due to the USB architecture.
Software RAID 1 Hardware RAID 1 Mirroring Wikipedia	Two or more hard drives configured as RAID 1 Mirroring where files are duplicated on both drives creating two identical copies of all files on the PC.	$150 and up for a pair of matched hard drives assuming you have a RAID capable motherboard.	An exact duplicate copy of all files occurs real-time without user intervention. Though technically not considered as backup, RAID creates data redundancy and effectively works as a data backup for most all situations. May be the best real-time 'backup' solution currently available.	For software RAID - requires a similar motherboard with the same or backward compatible RAID hardware to recover your data if a hardware failure occurs. If you will be using Intel Matrix RAID two SATA hard drives are required. Hardware RAID requires a similar RAID controller to recover your data if a RAID controller card fails. The only way to protect yourself from this years down the road is to purchase a backup RAID controller, purchase a used controller or have a professional data recovery service recover your data. WARNING! Creation of a RAID array is destructive to any existing data. Use two new identical drives or backup and verify your data when using two identical existing hard drives. If a drive fails and you want to restore full RAID functionality an exact or similar hard drive is required or two of the same new drives required. Additional setup and configuration required - should not be attempted by the computer illiterate. Additional drivers may be needed during OS installation. Improper shutdown of the OS may require a lengthy rebuild of the mirrored volume. Software RAID uses a small amount of CPU cycles - not suitable for older CPU's.	Don't confuse RAID 0 with RAID 1. RAID 0 striping is only for data that you can afford to lose. It is not data redundancy. See discussion below for several RAID implementation options.
SSD Drive Wikipedia	A Solid State Drive like the SDRAM memory in your computer can store and retrieve data quickly without any moving parts. Unlike the memory in your computer, the data stored in the SSD device is not lost when power to the PC is lost. It looks like another hard disk to your operating system, the difference being that it is faster than traditional hard drives.	$159 8GB IDE $419 60 GB SATA $639 120GB SATA	SSDs already have faster access and throughput times than traditional drives. Fast and error free backups. Lower power consumption.	Costly per GB compared to traditional drives. New technology with unproven reliability and lifetimes. Only low storage sizes available. Limited availability. Limited write cycles. May be incompatible with drives on the same interface cable requiring an OS reload. RAID may perform equally as well or better at much lower costs.	Costs continue to fall and may approach traditional hard drives. Not a good choice currently as a backup option due to its unproven reliability over time. Recommended for early adopters only. May be mainstream with higher capacities, faster read/write times and wider availability by the time you read this article. I am including it here primarily because as a solid state backup device it may eventually have a longer lifetime than mechanically based hard drives.
Shadow Copies Previous Versions Wikipedia	Automatically creates a unique snapshot of a file that will not be changed on subsequent editing of the file.	XP Home $90 to Vista Ultimate $325	Simple to implement and use. Automatically created by the OS. Allows you to restore a version of a file if you have accidentally saved changes and lost important information in a working copy of a file.	Many copies of files will be created changed over a long period of time using disk space. Older versions of files will be deleted it the space allocated is filled. Copies are created on a schedule that you can specify but if this schedule is too long, a recent version of the shadow copy will not be available. Must be 'turned on' and configured. Shadow copies can be manually created but this is time consuming in the current implementation of Microsoft's Previous Versions and requires the discipline to create.	Technically not a true backup option because an exact copy is not stored. I am including it here because it is often helpful to keep a copy of the file of how it looked at an earlier time. Implemented in Windows XP SP2 and Server 2003 via the Volume Shadow Copy Service. Available as Previous Versions in the Business, Ultimate and Enterprise versions of Windows Vista.

Back to Topics Covered In This Article

Appendix B

Intel Matrix RAID Options for Backup Strategy Level One - On PC

RAID 1 On Two Hard Drives

TIP: Understand RAID fully before you choose to implement this option or use a professional experienced in RAID to set up and configure.

RAID should not be used exclusively as a backup solution. Although RAID functions much like other backup options, it should be considered as data redundancy and used in concert with other backup options from levels two and three.

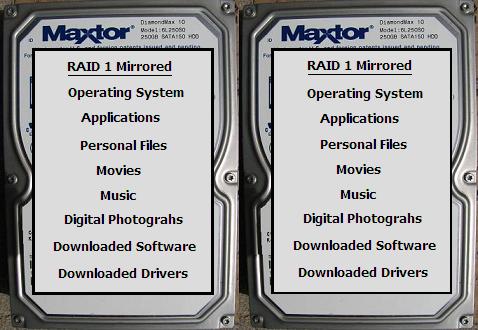

A RAID 1 mirrored array is a duplication of all of your files on two hard drives. You gain no additional write speed with a mirrored array, but you will see faster read times than with only one hard drive. The RAID array pictured below consists of one RAID 1 mirrored volume (Volume 0) on two identical hard drives.

RAID 1 mirroring is an identical image of all of your files on two hard drives. Question: Which drive in a RAID 1 array is the redundant drive? Answer: The redundant drive is the hard drive in the array that does not fail.

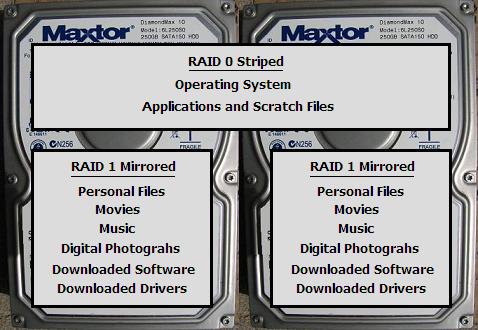

RAID 0 and RAID 1 On Two Hard Drives

Two RAID volumes can be created in a RAID array using only two hard drives. Volume 0 can be set up as a RAID 0 striped volume and Volume 1 set up as a RAID 1 mirrored volume. Use this option instead of one simple RAID 1 volume to maximize your available disk space and for data intensive applications like video editing.

If you know your way around a PC and understand the risks of having your data stored on a RAID 0 striped volume, then you are probably a good candidate for running RAID 0 and RAID 1 on two drives using Intel's Matrix Storage solution. RAID 0 essentially doubles your risk of data loss. Don't put any data on a RAID 0 array that you can't afford to lose.

Other more robust levels of RAID exist but require three or more hard drives. These quickly become out of reach for the average user.

Let's look at how my logical drives/partitions are configured in a RAID array using a strategy to maximize drive space, speed and redundancy

Logical Drive C: Operating System - RAID 0 Striped
Logical Drive D: OS Applications - RAID 0 Striped
Logical Drive E: Documents - RAID 1 Mirrored
Logical Drive F: Music - RAID 1 Mirrored
Logical Drive G: Multimedia - RAID 1 Mirrored

For more information about the different levels of RAID available and the downside to RAID, read Want Speed And Data Safety? Consider RAID. I write about my trials, troubles, tribulations and triumphs configuring and using Intel Matrix RAID 0 and RAID 1 on only two hard drives.

Back to Topics Covered In This Article

Appendix C

Media Types for Backup Strategy Level Two - On Site

Options	Dollar Costs⁴	Cost per MB (cents)	Data Transfer Rates*	Advantages	Disadvantages	Comments
Floppy Disk Wikipedia	$0.22	15.278	30 - 125 KB/s	Simple and easy to use by almost anyone.	Limited to very small files. Bulky, slow, may not work in a different floppy drive. Media wears out quickly. High cost per MB. Universal use and compatibility advantages disappearing.	The floppy lives on, much to the chagrin of today's IT staff. Useful only for small files i.e. small text and email files. I only include it here because if a floppy is the only backup a non-PC literate persons uses, it is better than no backup at all. Use a standard 1.44 MB HD floppy and drive.
Tape Cartridge Wikipedia	DDS-1 2 GB $4.99 DDS-5 36 GB $11.99 AIT-1 40 GB $21.52 AIT-5 400 GB $54.99	.250 .033 .054 .014	3,000 - 16,000 KB/s non-compressed	Small, compact, inexpensive per MB. Very long shelf life.	Not convenient for partial backups. Media has limited write cycles. Data can only be accessed sequentially making the restore process very time consuming. Tape drives are expensive ranging from $250 to $1000.	Typically used in a corporate environment for large daily (overnight) full backups. A reasonable solution for those who have large amounts of data or for creating archival volumes. Claims are made of 30+ years of shelf life if you can still find a tape drive and PC to read it 30 years from now.
CD-ROM Wikipedia	CDR $0.20 CDRW $0.400	.029 .057	1X = 150 KB/s CDR 48X 7,200 KB/s CDR 52X 7,800 KB/s CDRW 4X 600 KB/s CDRW 32X 4,800 KB/s (Maximum) Typical rates are 66% - 75% of quoted speeds	Widely available.	Inferior to DVDs in almost every category. Susceptible to data errors during the burn process especially at max speeds. More vulnerable to physical damage than DVDs i.e. by impact to or writing on the top surface. Polycarbonate substrate can be easily scratched causing data read errors. ¹⁷ Rewritable CD-ROMS in theory can be written to 1,000 times.⁵ May have the shortest shelf life of removable media options.⁷	For maximum data transfer rates match the media speed with your CD-ROM burner Read/Write speeds. Burning CD-ROMs at speeds slower than the maximum advertised speeds may increase shelf life and may reduce errors during the burning process. The life of CD-ROMs can vary from brand to brand. Data loss may begin to occur as early as two to five years from the date of your backup for lower quality brands. Don't assume that data can be recovered forever from CD-ROMS.
DVD DVD +R Wikipedia DVD -R Wikipedia DVD +RW Wikipedia DVD -RW Wikipedia S/L 4.7 GB D/L 8.54 GB	+/-R S/L $0.23 +/-R D/L $1.04 +/-RW S/L $0.67	.005 .012 .014	1X = 1318 KB/s 8X 10,544 KB/s 16X 21,088 KB/s (Maximum)	Low cost per MB. Larger capacity 4.7 GB S/L and 8.54 GB D/L than CD-ROM.	Susceptible to data errors during the burn process especially at max speeds. Polycarbonate substrate can be easily scratched causing data read errors. Because DVDs use a sandwich of two polycarbonate discs, delamination is a concern in high RPM drives. ¹⁷ Rewritable DVDs in theory can be written to 1,000 times.⁶ May have the shortest shelf life of removable media options.⁷	For maximum data transfer rates match the media speed with your DVD burner Read/Write speeds. Burning DVDs at speeds slower than the maximum advertised speeds may increase shelf life and may reduce errors during the burning process. Don't confuse the speed ratings of CDs and DVDs. 4X DVD = 35.1X CD-ROM. Like CD-ROMs, the life of DVDs can vary from brand to brand. Don't assume that data can be recovered forever from DVDs.
Blu-Ray (BD) Wikipedia S/L 25 GB D/L 50 GB	S/L 8.00 S/L RW 10.99 D/L 33.38 D/L RW 42.45	.032 .044 .067 .085	1X = 4,395 KB/s 8X 35,160 KB/s (planned)⁸ (Maximum)	Larger capacity than DVD 25 GB S/L and 50 GB D/L. Polymer or brand specific scratch resistant discs an improvement over CD-ROMs and DVDs. Better error correction than DVDs.⁹	Blu-ray burners are expensive, $400 and up. Playback software may be required for Windows Vista. The HD-DVD consortium of companies may have moved on to HVD (Holographic Versatile Disc) that may someday store up to 3.9 TB or 160 times the capacity of S/L Blu-ray Discs. ¹⁰	Most Blu-ray burners support DVD. Some also support CD-ROM. Check OS support carefully - not all operating systems are supported and varies by brand and model. Shelf life of Blu-ray is unknown. Don't assume that data can be recovered forever from Blu-ray discs. May be quickly surpassed if holographic memory is viable.
Flash Memory Wikipedia (SD)	1 GB $4.90 2 GB $6.99 4 GB $15.75	.490 .350 .394	Write 9,000 KB/s Read 10,000 KB/s.¹¹ (Maximum) For various reasons, real world rates are far less than the rated speed of the flash card media. See Real World Transfer Rates below.	Small, compact and very convenient to use.	Limited life due to number of write cycles (100,000 plus) but should not be an issue for the average PC user. Data loss can occur if removed improperly especially in USB readers. High cost per MB. USB architecture limits bandwidth of Hi-Speed card readers. USB drivers may be needed to support USB 2.0 Hi-Speed in Windows 2000 and XP SP1.¹²	Be sure to find a card reader with the most popular flash card formats and the format that you will be using. Flash card readers can be found for less than $20. Look for a flash card reader with USB 2.0 480 Mbps Hi-Speed specs¹³ or a FireWire IEEE 1394a/1394b card reader if your motherboard supports FireWire.
Hard Disk Cartridges Imation Odyssey ProStor's RDX Iomega REV Wikipedia	Imation Odyssey 40 GB $84.54 80 GB $126.84 120 GB $194.48 Imation USB RDX 40 GB $101.46 80 GB $152.19 160 GB $277.72 Iomega REV 35/90 GB $49.99 70/140 GB $55.99	.211 .159 .162 .254 .190 .174 .143 .080	Odyssey 36,860 KB/s¹⁴ Iomega REV 25,600 KB/s (Maximum) RDX 34,722 KB/s 125 GB in 1 hour¹⁵	Large storage capacity and fast backup time. Shock resistant cartridge. Low cost per MB. Convenient. A good substitute for tape.	Expensive up front costs and cartridge costs. Imation Docking bays range in price from $100 - $250 when purchased with a disk cartridge. The Iomega REV Read/Write heads are contained in the drive unit and not in the disk cartridge. This can allow for possible contamination issues of disk media¹⁶. Iomega REV drives are expensive and cost $310 for 35 GB drive and $365 for the 70 GB drive.	Prostor's RDX system is licensed to Imation, Tandberg Data and Dell. The shelf life for all removable disk cartridges may only be 5-10 years¹⁷ but ProStor claims a 10+ year shelf life for their RDX storage system.¹⁸ Iomega claims that their REV drives have a 30+ year shelf life.¹⁹
Bridged USB Wikipedia	$15 USB Bridge Cable	N/A	900 KB/s USB 1.1 9100 KB/s USB 2.0	Inexpensive and relatively simple.	Requires two PCs. Limited to 5 M (16 ft) without additional extender cable or USB hub. Requires special bridged USB networking cable and two PCs. WARNING! Using an ordinary USB cable can damage your computers.	I'm not recommending a second PC for backup purposes but if you already have two PCs and they are in close proximity, you can use them for regularly scheduled backups. Look for a cable with USB 2.0 480 Mbps (57.2 MB/s) Hi-Speed specs. Information about Direct Cable Connection with Windows XP Home Edition Vista requires a special USB cable and uses Windows Easy Transfer to copy the files. PCs using Vista can transfer data from PCs running XP or Vista.
Ethernet Crossover Wikipedia	$1.34 Cat 5E 7 ft Cable $3.49 Cat 5E 25 ft Cable	N/A	10 Mbps 1,221 100 Mbps 12,210 1 Gbps 122,100 10 Gbps 1,221,000 (Maximum)	Inexpensive and simple.	Requires two PCs and an Ethernet Crossover cable. Requires a Network Interface Card (NIC) or Ethernet capable motherboard in your PC. Look for an RJ45 I/O port on the back of your computer.	I'm not recommending a second PC for backup purposes but if you already have two PCs, you can be using them for regularly scheduled backups.
WiFi Wikipedia	$1.10 Cat 5E 7 ft Cable $3.79 Cat 5E 25 ft Cable WiFi Router $50	N/A	802.11g 2,319 KB/s 802.11n 9,033 KB/s 802.11y 2,808 KB/s	Fast and reliable backups.	Requires two PCs. Requires technical expertise beyond the average user. Requires proper configuration and encryption to lock out neighbors and protect your data. WEP based WiFi not secure.	I'm not recommending a second PC with WiFi for backup purposes but if you already have two WiFi capable PCs, you can be using them for regularly scheduled backups. An ad-hoc Wireless network can be also be setup without having to purchase and use a broadband router.
LAN Wikipedia	$1.10 Cat 5E 7 ft Cable $3.79 Cat 5E 25 ft Cable Router $50	N/A	10 Mbps 1,221 KB/s 100 Mbps 12,210 KB/s 1 Gbps 122,100 KB/s 10 Gbps 1,221,000 KB/s (Maximum)	Fast and reliable backups.	Requires two Wi-Fi capable PCs. Requires technical expertise beyond the average user to configure. Requires a Network Interface Card (NIC) or Ethernet capable motherboard in your PC. Look for an RJ45 I/O port on the back of your computer. Requires a switch/router/firewall device and CAT 5 cable to connect the PCs to one another and the internet. Just where do you put that cable if you want to transfer data to the other side of the house and it is not pre-wired for CAT5 Ethernet?	I'm not recommending a second PC and a LAN for backup purposes but if you already have a second PC and router, you can be using it for regularly scheduled backups. Router should include firewall and switch. Getting WiFi built in to the router for the few extra dollars it costs is a good idea. Print Server port optional.

Back to Topics Covered In This Article

Appendix D

Level Two Real World Transfer Rates
CD-ROMs, DVDs and DVD Read/Write Optical Drives

I had to purchase a new CD/DVD read/write drive (don't ask) and decided on a Samsung 20X DVD+/-R DVD burner model SH-S202G. It had the lowest access times of similar models that I had compared. I also ordered a 100 pack on spindle of Verbatim 4.7 GB DVD+R 16X media primarily because I was writing this article. Oh the sacrifices I make for you my patient readers!

The Verbatim DVDs were not written at their advertised 16X speed. When 'Max' was selected in Deep Burner, the selected write speed ended up being 18X! I wasn't expecting that. If I have done my math correctly, the actual numbers are far short of 18X.

Be aware that if you have an older DVD drive or slower rated DVD discs you are likely to see lower numbers than those in the table below.

Disc Type # of Files Data Transferred
(KB) Total Time(Secs)* Transfer Speed
(KB/s) Transfer Speed
(CD-ROM 1X = 150 KB/s)
(DVD 1X = 1318 KB/s)

Hewlett Packard 700 MB 48X CD-R 1 276,442 116 2383.1 15.9X

2,130 276,442 115 2403.8 16.0X

Verbatim 4.7 GB 16X DVD+R
(18X actual) 1 276,442 71 3893.5 3.0X

2,130 276,442 68 4065.3 3.1X

Disc Type	# of Files	Data Transferred (KB)	Total Time(Secs)*	Transfer Speed (KB/s)	Transfer Speed (CD-ROM 1X = 150 KB/s) (DVD 1X = 1318 KB/s)
Hewlett Packard 700 MB 48X CD-R	1	276,442	116	2383.1	15.9X
2,130	276,442	115	2403.8	16.0X
Verbatim 4.7 GB 16X DVD+R (18X actual)	1	276,442	71	3893.5	3.0X
2,130	276,442	68	4065.3	3.1X

* Tests were done without file verification.

TIP: Test your backups to CDs and DVDs with Read/Write media until you have a working plan/schedule.

TIP: Always verify your backups when backing up to removable media. This can be easily done in Windows by copying all of the files on the removable media to a temporary directory on your hard drive. Remove the temporary directory when you are satisfied that the backup is good. Many CD/DVD recording software allows you the option to verify the data after writing. It is always a good idea to turn this option on.

TIP: If you will be adding new files to your existing removable media, read-only media is a good choice. If you will be replacing existing files with updated versions, read/write media is preferable. This pertains to CDR, CDRW and DVDR, DVDRW media only.

Flash Memory and Flash Card Readers

The data transfer rates you can expect using USB depend on a number of factors²⁰ and can vary widely. Real world data transfer rates will be less than and in some cases much less than the maximum data rates usually quoted.

The actual data transfer rate numbers for an OCZ 150X 2 GB flash card in a Rosewill RCR-100 USB 2.0 card reader were perplexing. I expected to see numbers between 50 - 75% of 22,500 KB/s (150X * 150 KB/s) for the OCZ flash card. I saw data transfer rates of less than 20% of the maximum transfer rate. So why the low data transfer rates?

According to Wikipedia "Typical hi-speed USB devices operate at lower speeds, often about 3 MB/s overall, sometimes up to 10-20 MB/s. The highest USB data transfer rate claimed by USB vendors is 40 MB/s."²¹ So the 4.5 MB/s 'best case' data rate I was seeing falls in line with typical expected data rates.

Flash Card # of Files Data Transferred
(KB) Total Time
(Secs) Transfer Speed
(KB/s) Transfer Speed
(1X=150KB/s)

A-Data Speedy 1 GB
(50X)²² 1 276,442 141 1960.6 13.1X

2,130 276,442 1,577 175.3 1.2X

OCZ 150X 2 GB 1 276,442 61 4531.8 30.2X

2,130 276,442 640 431.9 2.9X

Flash Card	# of Files	Data Transferred (KB)	Total Time (Secs)	Transfer Speed (KB/s)	Transfer Speed (1X=150KB/s)
A-Data Speedy 1 GB (50X)²²	1	276,442	141	1960.6	13.1X
2,130	276,442	1,577	175.3	1.2X
OCZ 150X 2 GB	1	276,442	61	4531.8	30.2X
2,130	276,442	640	431.9	2.9X

And if that wasn't bad enough, transferring hundreds or thousands of files will take a lot longer than transferring only one file. In my test, 2,130 files totaling 276,442 KB were transferred at about 10% of the rate for one file of the same size.

You can use this tool from Microsoft's Website to determine your existing USB device speed:
UVCView - Diagnostic Tool for USB Video Class Hardware

The Rosewill RCR-100 Flash Card Reader is reported as 'Device Bus Speed: High' on the 'Current Config Value:' line at the top of the device information list.

Bottom line, flash memory as currently implemented with USB is not as good a choice for large backups as it would appear at first glance.

TIP: You may have to enable Hi-Speed USB in the BIOS to get Hi-Speed data rates.

TIP: USB drivers may be needed to support USB 2.0 Hi-Speed in Windows 2000 and XP SP1.¹²

TIP: Keep your removable media in a safe and secure place and do not use it in other devices.

Back to Topics Covered In This Article

Appendix E

Options for Backup Strategy Level Three - Off-site

Options	Description	Dollar Costs	Advantages	Disadvantages	Comments
Removable Media	Copy files to one of the removable media options listed above and move the backup storage media to a different site.	Very expensive - includes media costs plus pickup and storage costs.	You can find and work with a trusted local storage facility.	Must be physically moved to and stored at another site. Retrieval of media is time consuming and may not be available when needed. Time intensive to insert the removable media, copy files, remove and transfer to an off-site facility. More expensive than other backup options.	Not a reasonable solution for most PC users. At best might only be a swap of DVDs with neighbors or family every few months. A better solution for small businesses using a scheduled pickup by an off site storage company.
Electronic File Transfer (Optional for dial-up users)	Typically consists of specialized software that you receive from an online storage site. This software service runs in the background and transfers your files to an off-site storage server.	Costs and service plans range widely from 2 GB free at Driveway to 10 GB for $34.75 per month at FirstBackup.	Simple and cost effective. Transfer process starts automatically and runs as a background process for most services. Recovery can be done quickly.	Not a good solution for dial-up users. Files can be lost if the off-site storage facility does not guarantee backup coverage. You may not want sensitive or personal data stored on someone else's server even though data encryption is used. You may not want to rely on someone else for your backup storage and retrieval. WARNING! If you are solely responsible for you data encryption key a lost key will mean that your files are indecipherable. Data transfers can slow down your PC and Internet connection if the transfer software does not run during idle periods.	This is becoming increasingly a backup option of choice as broadband becomes more widely available. Some companies provide multiple site redundancy reducing the risk of a single catastrophic event. Verify that the company providing your online storage has guaranteed backup and recovery plans of their own! If you are concerned about the security of your files, verify that the service uses at least 128 bit encryption and that only you have access to the key. This poses the additional burden of backing up the key, printing it out and storing it in a secure place but necessary if you want your files to remain secure. Read all contracts thoroughly before putting any of your files on one of these servers and before signing up with any service.

Develop and Implement a Personal Backup Plan

Overview

Topics Covered In This Article

Configuring Your PC to be Backup Friendly

Structure your file system for simpler backups

Order Your Next Computer with a Backup Plan in Mind

Dial-up or Broadband?

The Backup Plan Levels Overview

Level 0 - No Backup Plan

Level 1 - On PC Redundancy

Level 2 - On Site Storage

Level 3 - Off Site Storage

The Backup Plan Levels Advantages and Disadvantages

The Steps of the Backup Plan

Media Selection Criteria

Data Recovery

So What is My Backup Plan?

The Final Word

Editorial Privilege

Appendix A

Media Types for Backup Strategy Level One - On PC

Appendix B

Intel Matrix RAID Options for Backup Strategy Level One - On PC

RAID 1 On Two Hard Drives

RAID 0 and RAID 1 On Two Hard Drives

Appendix C

Media Types for Backup Strategy Level Two - On Site

Appendix D

Level Two Real World Transfer Rates
CD-ROMs, DVDs and DVD Read/Write Optical Drives

Flash Memory and Flash Card Readers

Appendix E

Options for Backup Strategy Level Three - Off-site

Authors Notes

Additional Resources:

Free ISO Burner Apps

Footnotes:

Test System Specs:

Tweet
© Copyright 2007-2015 Alan Norton None of the content may be used or reproduced without written authorization from Alan Norton.

Develop and Implement a Personal Backup Plan

Overview

Topics Covered In This Article

Configuring Your PC to be Backup Friendly

Structure your file system for simpler backups

Order Your Next Computer with a Backup Plan in Mind

Dial-up or Broadband?

The Backup Plan Levels Overview

Level 0 - No Backup Plan

Level 1 - On PC Redundancy

Level 2 - On Site Storage

Level 3 - Off Site Storage

The Backup Plan Levels Advantages and Disadvantages

The Steps of the Backup Plan

Media Selection Criteria

Data Recovery

So What is My Backup Plan?

The Final Word

Editorial Privilege

Appendix A

Media Types for Backup Strategy Level One - On PC

Appendix B

Intel Matrix RAID Options for Backup Strategy Level One - On PC

RAID 1 On Two Hard Drives

RAID 0 and RAID 1 On Two Hard Drives

Appendix C

Media Types for Backup Strategy Level Two - On Site

Appendix D

Level Two Real World Transfer Rates CD-ROMs, DVDs and DVD Read/Write Optical Drives

Flash Memory and Flash Card Readers

Appendix E

Options for Backup Strategy Level Three - Off-site

Authors Notes

Additional Resources:

Free ISO Burner Apps

Footnotes:

Test System Specs:

Level Two Real World Transfer Rates
CD-ROMs, DVDs and DVD Read/Write Optical Drives
